Discoverer ATR Light Truck Applications (Cooper Tire)

Browse Products » Cooper Tires 2010 » Light Truck/SUV » Light Truck
Audio Accounts Products Images

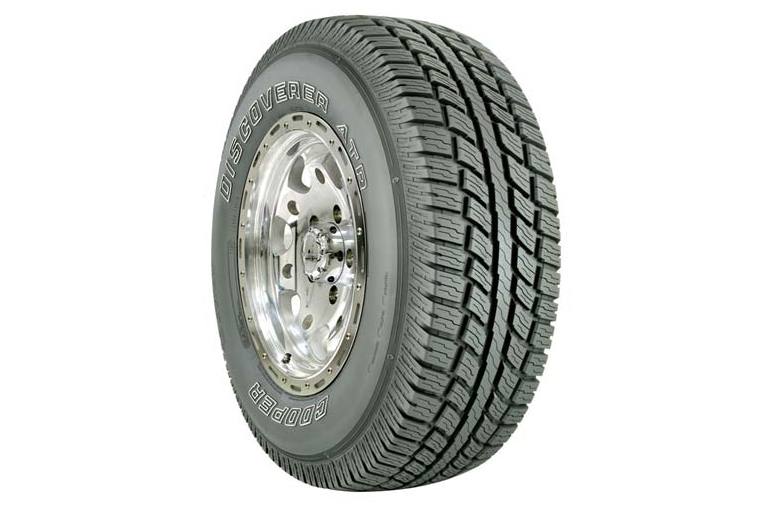

Discoverer ATR Light Truck Applications
Click here to view full image.
This product is part of
Cooper Tires 2010
  • Features
  • Request a Quote
  • Send to a Friend
  • Extensive "Zig-Zag" Siping: The extensive number of sipes on the center rib and tread elements are deep to provide for long, dependable traction in all-weather conditions while the ?zig-zag? shape increases the effectiveness of the gripping edges.
  • M+S Rated
  • Five-Rib All Terrain Design: This modern five-rib design features a combination of lateral slots and sawtooth circumferential grooves which are wide and deep to provide solid all-terrain performance.
  • V2Tech Optimized Tire Profile: Using state-of-the-art VT2ech computer-aided engineering, an optimum mold profile was designed to provide favorable balance of wear and handling characteristics.
Product Information
Name:Discoverer ATR Light Truck Applications
Manufacturer:Cooper Tire
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Phone:(601) 825-8473
Fax:(601) 825-0940
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:Discoverer ATR Light Truck Applications
Manufacturer:Cooper Tire
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

Product Options

  Description   Our Price (USD)
Part#: 05510
TIRE SIZE: LT215/85R16
LOAD RANGE: E
SIDEWALL: BSW
RIM WIDTH (min): 6
RIM WIDTH (max): 7
RIM WIDTH (standard): 6
STATIC LOADED RADIUS: 14.1
STATIC LOADED WIDTH: 10
MAX LOAD (SINGLE): 2680
MAX LOAD (DUAL): 2470
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 686
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 9.9
OVERALL DIAMETER: 30.3
OVERALL WIDTH: 8.42
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 112/115R
 Request a Quote

Part#: 05502
TIRE SIZE: LT235/85R16
LOAD RANGE: E
SIDEWALL: BSW
RIM WIDTH (min): 6.5
RIM WIDTH (max): 7
RIM WIDTH (standard): 6.5
STATIC LOADED RADIUS: 14.8
STATIC LOADED WIDTH: 10.6
MAX LOAD (SINGLE): 3042
MAX LOAD (DUAL): 2778
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 660
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 10.8
OVERALL DIAMETER: 31.78
OVERALL WIDTH: 9.36
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 116/120R
 Request a Quote

Part#: 05511
TIRE SIZE: LT225/75R16
LOAD RANGE: E
SIDEWALL: BSW
RIM WIDTH (min): 6
RIM WIDTH (max): 7
RIM WIDTH (standard): 6
STATIC LOADED RADIUS: 13.6
STATIC LOADED WIDTH: 9.8
MAX LOAD (SINGLE): 2680
MAX LOAD (DUAL): 2470
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 713
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 10.2
OVERALL DIAMETER: 29.39
OVERALL WIDTH: 8.92
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 112/115R
 Request a Quote

Part#: 05501
TIRE SIZE: LT245/75R16
LOAD RANGE: E
SIDEWALL: BSW
RIM WIDTH (min): 7
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 7
STATIC LOADED RADIUS: 14.1
STATIC LOADED WIDTH: 10.1
MAX LOAD (SINGLE): 3042
MAX LOAD (DUAL): 2778
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 684
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 11.3
OVERALL DIAMETER: 30.37
OVERALL WIDTH: 9.26
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 116/120R
 Request a Quote

Part#: 05518
TIRE SIZE: 30X9.50R15LT
LOAD RANGE: C
SIDEWALL: OWL
RIM WIDTH (min): 7.5
RIM WIDTH (max): 8.5
RIM WIDTH (standard): 7.5
STATIC LOADED RADIUS: 13.6
STATIC LOADED WIDTH: 10.4
MAX LOAD (SINGLE): 1985
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 711
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 29.3
OVERALL WIDTH: 9.6
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 104R
 Request a Quote

Part#: 05519
TIRE SIZE: 31X10.50R15LT
LOAD RANGE: C
SIDEWALL: OWL
RIM WIDTH (min): 8.5
RIM WIDTH (max): 9
RIM WIDTH (standard): 8.5
STATIC LOADED RADIUS: 14
STATIC LOADED WIDTH: 11.5
MAX LOAD (SINGLE): 2270
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 688
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 30.3
OVERALL WIDTH: 10.7
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 109R
 Request a Quote

Part#: 05520
TIRE SIZE: LT235/75R15
LOAD RANGE: C
SIDEWALL: OWL
RIM WIDTH (min): 6.5
RIM WIDTH (max): 7
RIM WIDTH (standard): 6.5
STATIC LOADED RADIUS: 13.5
STATIC LOADED WIDTH: 10
MAX LOAD (SINGLE): 1985
MAX LOAD (DUAL): 1820
TREAD DEPTH (32nds): 16
REVs PER MILE: 723
MAX PRESSURE (DUAL): 50
MAX PRESSURE (SINGLE): 50
MIN DUAL SPACING: 10.8
OVERALL DIAMETER: 28.9
OVERALL WIDTH: 9.15
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 101/104R
 Request a Quote

Part#: 05521
TIRE SIZE: LT235/85R16
LOAD RANGE: E
SIDEWALL: OWL
RIM WIDTH (min): 6.5
RIM WIDTH (max): 7
RIM WIDTH (standard): 6.5
STATIC LOADED RADIUS: 14.8
STATIC LOADED WIDTH: 10.6
MAX LOAD (SINGLE): 3042
MAX LOAD (DUAL): 2778
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 660
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 10.8
OVERALL DIAMETER: 31.78
OVERALL WIDTH: 9.36
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 116/120R
 Request a Quote

Part#: 05522
TIRE SIZE: LT245/75R16
LOAD RANGE: C
SIDEWALL: OWL
RIM WIDTH (min): 7
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 7
STATIC LOADED RADIUS: 14.2
STATIC LOADED WIDTH: 10.4
MAX LOAD (SINGLE): 2205
MAX LOAD (DUAL): 2006
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 688
MAX PRESSURE (DUAL): 50
MAX PRESSURE (SINGLE): 50
MIN DUAL SPACING: 11.3
OVERALL DIAMETER: 30.52
OVERALL WIDTH: 9.62
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 104/108R
 Request a Quote

Part#: 05523
TIRE SIZE: LT245/75R16
LOAD RANGE: E
SIDEWALL: OWL
RIM WIDTH (min): 6.5
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 7
STATIC LOADED RADIUS: 14.1
STATIC LOADED WIDTH: 10.1
MAX LOAD (SINGLE): 3042
MAX LOAD (DUAL): 2778
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 684
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 11.3
OVERALL DIAMETER: 30.37
OVERALL WIDTH: 9.26
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 116/120R
 Request a Quote

Part#: 05512
TIRE SIZE: LT265/75R16
LOAD RANGE: C
SIDEWALL: OWL
RIM WIDTH (min): 7
RIM WIDTH (max): 8
RIM WIDTH (standard): 7.5
STATIC LOADED RADIUS: 14.7
STATIC LOADED WIDTH: 11.3
MAX LOAD (SINGLE): 2470
MAX LOAD (DUAL): 2270
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 657
MAX PRESSURE (DUAL): 50
MAX PRESSURE (SINGLE): 50
MIN DUAL SPACING: 12.2
OVERALL DIAMETER: 31.6
OVERALL WIDTH: 10.49
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 109/112R
 Request a Quote

Part#: 05506
TIRE SIZE: LT265/75R16
LOAD RANGE: E
SIDEWALL: OWL
RIM WIDTH (min): 7.5
RIM WIDTH (max): 8
RIM WIDTH (standard): 7.5
STATIC LOADED RADIUS: 14.8
STATIC LOADED WIDTH: 11.4
MAX LOAD (SINGLE): 3415
MAX LOAD (DUAL): 3085
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 657
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 12.2
OVERALL DIAMETER: 31.6
OVERALL WIDTH: 10.63
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 120/123R
 Request a Quote

Part#: 05507
TIRE SIZE: LT285/75R16
LOAD RANGE: D
SIDEWALL: OWL
RIM WIDTH (min): 8
RIM WIDTH (max): 9
RIM WIDTH (standard): 8
STATIC LOADED RADIUS: 15.2
STATIC LOADED WIDTH: 12.3
MAX LOAD (SINGLE): 3305
MAX LOAD (DUAL): 3000
TREAD DEPTH (32nds): 17
REVs PER MILE: 637
MAX PRESSURE (DUAL): 65
MAX PRESSURE (SINGLE): 65
MIN DUAL SPACING: 13.1
OVERALL DIAMETER: 32.6
OVERALL WIDTH: 11.47
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 119/122R
 Request a Quote

Part#: 05513
TIRE SIZE: LT315/75R16
LOAD RANGE: D
SIDEWALL: OWL
RIM WIDTH (min): 8
RIM WIDTH (max): 10
RIM WIDTH (standard): 8.5
STATIC LOADED RADIUS: 16.2
STATIC LOADED WIDTH: 13.3
MAX LOAD (SINGLE): 3195
TREAD DEPTH (32nds): 17
REVs PER MILE: 603
MAX PRESSURE (SINGLE): 50
MIN DUAL SPACING: 14.3
OVERALL DIAMETER: 34.5
OVERALL WIDTH: 12.43
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 121R
 Request a Quote

Part#: 05514
TIRE SIZE: LT255/70R16
LOAD RANGE: C
SIDEWALL: OWL
RIM WIDTH (min): 7.5
RIM WIDTH (max): 8
RIM WIDTH (standard): 7.5
STATIC LOADED RADIUS: 13.7
STATIC LOADED WIDTH: 11.3
MAX LOAD (SINGLE): 2205
MAX LOAD (DUAL): 1985
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 692
MAX PRESSURE (DUAL): 50
MAX PRESSURE (SINGLE): 50
MIN DUAL SPACING: 12.3
OVERALL DIAMETER: 30.08
OVERALL WIDTH: 10.38
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 104/108R
 Request a Quote

Part#: 05504
TIRE SIZE: LT305/70R16
LOAD RANGE: D
SIDEWALL: OWL
RIM WIDTH (min): 8
RIM WIDTH (max): 9.5
RIM WIDTH (standard): 9
STATIC LOADED RADIUS: 15.1
STATIC LOADED WIDTH: 12.6
MAX LOAD (SINGLE): 2910
MAX LOAD (DUAL): 2680
TREAD DEPTH (32nds): 17
REVs PER MILE: 638
MAX PRESSURE (DUAL): 50
MAX PRESSURE (SINGLE): 50
MIN DUAL SPACING: 14.2
OVERALL DIAMETER: 32.95
OVERALL WIDTH: 12.24
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 115/118R
 Request a Quote

Part#: 05508
TIRE SIZE: LT235/80R17
LOAD RANGE: E
SIDEWALL: OWL
RIM WIDTH (min): 6.5
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.5
STATIC LOADED RADIUS: 14.8
STATIC LOADED WIDTH: 10.1
MAX LOAD (SINGLE): 3085
MAX LOAD (DUAL): 2835
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 654
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 10.8
OVERALL DIAMETER: 31.78
OVERALL WIDTH: 9.23
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 117/120R
 Request a Quote

Part#: 05527
TIRE SIZE: LT245/75R17
LOAD RANGE: E
SIDEWALL: OWL
RIM WIDTH (min): 7
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 7
STATIC LOADED RADIUS: 14.7
STATIC LOADED WIDTH: 10.6
MAX LOAD (SINGLE): 3195
MAX LOAD (DUAL): 2910
TREAD DEPTH (32nds): 15.5
REVs PER MILE: 660
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 11.3
OVERALL DIAMETER: 31.5
OVERALL WIDTH: 9.95
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 118/121S
 Request a Quote

Part#: 05515
TIRE SIZE: LT265/70R17
LOAD RANGE: C
SIDEWALL: OWL
RIM WIDTH (min): 8
RIM WIDTH (max): 8.5
RIM WIDTH (standard): 8
STATIC LOADED RADIUS: 14.7
STATIC LOADED WIDTH: 11.3
MAX LOAD (SINGLE): 2470
MAX LOAD (DUAL): 2270
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 662
MAX PRESSURE (DUAL): 50
MAX PRESSURE (SINGLE): 50
MIN DUAL SPACING: 12.4
OVERALL DIAMETER: 31.58
OVERALL WIDTH: 10.61
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 109/112R
 Request a Quote

Part#: 05503
TIRE SIZE: LT265/70R17
LOAD RANGE: E
SIDEWALL: OWL
RIM WIDTH (min): 8
RIM WIDTH (max): 8.5
RIM WIDTH (standard): 8
STATIC LOADED RADIUS: 14.7
STATIC LOADED WIDTH: 11.7
MAX LOAD (SINGLE): 3195
MAX LOAD (DUAL): 2910
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 659
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 12.4
OVERALL DIAMETER: 31.6
OVERALL WIDTH: 10.9
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 118/121R
 Request a Quote

Part#: 05505
TIRE SIZE: LT275/70R17
LOAD RANGE: C
SIDEWALL: OWL
RIM WIDTH (min): 8
RIM WIDTH (max): 8.5
RIM WIDTH (standard): 8
STATIC LOADED RADIUS: 15
STATIC LOADED WIDTH: 12.6
MAX LOAD (SINGLE): 2600
MAX LOAD (DUAL): 2335
TREAD DEPTH (32nds): 16.5
REVs PER MILE: 647
MAX PRESSURE (DUAL): 50
MAX PRESSURE (SINGLE): 50
MIN DUAL SPACING: 12.8
OVERALL DIAMETER: 32.2
OVERALL WIDTH: 11.1
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 110/114R
 Request a Quote

Part#: 05516
TIRE SIZE: LT285/70R17
LOAD RANGE: D
SIDEWALL: OWL
RIM WIDTH (min): 8.5
RIM WIDTH (max): 9
RIM WIDTH (standard): 8.5
STATIC LOADED RADIUS: 15.1
STATIC LOADED WIDTH: 12.5
MAX LOAD (SINGLE): 3195
MAX LOAD (DUAL): 2910
TREAD DEPTH (32nds): 17
REVs PER MILE: 636
MAX PRESSURE (DUAL): 65
MAX PRESSURE (SINGLE): 65
MIN DUAL SPACING: 13.4
OVERALL DIAMETER: 32.76
OVERALL WIDTH: 11.69
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 118/121R
 Request a Quote

Part#: 05509
TIRE SIZE: LT315/70R17
LOAD RANGE: D
SIDEWALL: OWL
RIM WIDTH (min): 9.5
RIM WIDTH (max): 10
RIM WIDTH (standard): 9.5
STATIC LOADED RADIUS: 16.1
STATIC LOADED WIDTH: 13.4
MAX LOAD (SINGLE): 3195
MAX LOAD (DUAL): 2910
TREAD DEPTH (32nds): 17
REVs PER MILE: 606
MAX PRESSURE (DUAL): 50
MAX PRESSURE (SINGLE): 50
MIN DUAL SPACING: 14.8
OVERALL DIAMETER: 34.35
OVERALL WIDTH: 12.65
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 118/121R
 Request a Quote

Part#: 05526
TIRE SIZE: LT275/70R18
LOAD RANGE: E
SIDEWALL: OWL
RIM WIDTH (min): 8
RIM WIDTH (max): 8.5
RIM WIDTH (standard): 8
STATIC LOADED RADIUS: 15.5
STATIC LOADED WIDTH: 11.9
MAX LOAD (SINGLE): 3640
MAX LOAD (DUAL): 3305
TREAD DEPTH (32nds): 15.5
REVs PER MILE: 627
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 12.8
OVERALL DIAMETER: 33.15
OVERALL WIDTH: 11.11
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 122/125S
 Request a Quote

Part#: 05525
TIRE SIZE: LT275/65R18
LOAD RANGE: E
SIDEWALL: OWL
RIM WIDTH (min): 8
RIM WIDTH (max): 9.5
RIM WIDTH (standard): 8
STATIC LOADED RADIUS: 15
STATIC LOADED WIDTH: 11.9
MAX LOAD (SINGLE): 3415
MAX LOAD (DUAL): 3085
TREAD DEPTH (32nds): 15.5
REVs PER MILE: 647
MAX PRESSURE (DUAL): 80
MAX PRESSURE (SINGLE): 80
MIN DUAL SPACING: 12.8
OVERALL DIAMETER: 32.1
OVERALL WIDTH: 11.11
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 120/123S
 Request a Quote

Part#: 05524
TIRE SIZE: LT275/65R18
LOAD RANGE: C
SIDEWALL: OWL
RIM WIDTH (min): 7.5
RIM WIDTH (max): 9.5
RIM WIDTH (standard): 8
STATIC LOADED RADIUS: 15
STATIC LOADED WIDTH: 11.9
MAX LOAD (SINGLE): 2535
MAX LOAD (DUAL): 2335
TREAD DEPTH (32nds): 16
REVs PER MILE: 647
MAX PRESSURE (DUAL): 50
MAX PRESSURE (SINGLE): 50
MIN DUAL SPACING: 12.8
OVERALL DIAMETER: 32.1
OVERALL WIDTH: 11.05
TIRE WARRANTY: 50,000 mi.
DESCRIPTION: 110/113S
 Request a Quote

Brandon Location
Madison Location
Flowood Location
North Jackson Location
Passenger Tires
Light Truck & SUV
Top Services
Factory Promotions
We Recommend
Hours
M-F 7:00 a.m. 5:30 p.m.
Sat 7:00 a.m. 1:00 p.m.
Sun Closed
